Renogy 24V / 20A MPPT Solar Renewable Energy Controller Parameter Adjustable LCD Display Solar Panel Regulator fit for Gel Sealed Flooded and Lithium Battery

Renogy 24V / 20A MPPT Solar Renewable Energy Controller Parameter Adjustable LCD Display Solar Panel Regulator fit for Gel Sealed Flooded and Lithium Battery

Regular price $135.56 USD
Regular price Sale price $135.56 USD
Sale Sold out
Shipping calculated at checkout.

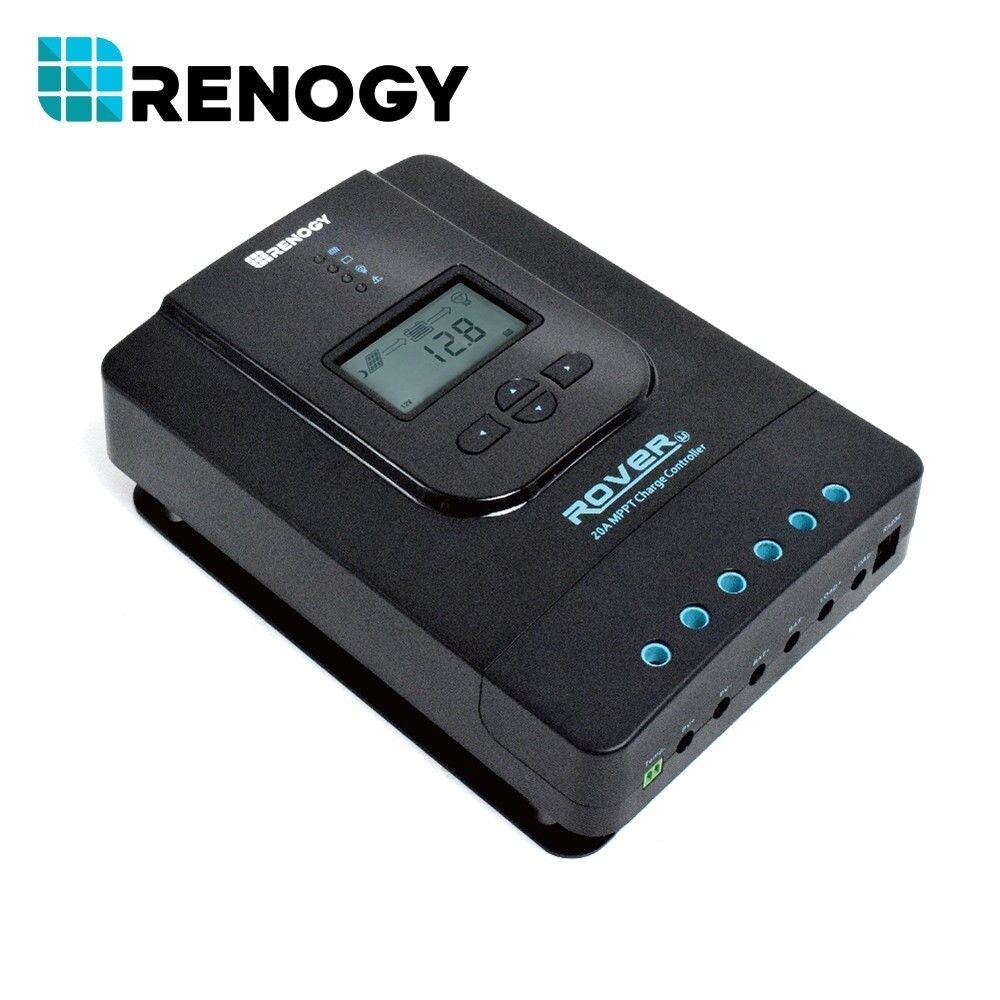

The 20A Rover Li MPPT Charge Controller features a sturdy case that protects against general wear and tear, and an aluminum heat sink that is perfect for heat dissipation. This intelligent controller is not only capable of up to 99% tracking efficiency, but can also self-diagnose itself, displaying error codes that you can easily look up. Capable of automatically detecting 12V/24V systems, this crucial system component can also handle various battery options such as GEL and Lithium. Pair this charge controller with the Renogy BT-1 and Renogy BT app to view your system's performance in real time and make parameter changes without having to get up.

【Innovative MPPT Design】 Die-cast aluminium design ensuring excellent heat dissipation and Renogy Maximum Power Point Tracking technology with a high tracking efficiency of up to 99% and peak conversion efficiency of 98%. It is the best charging solution even in cloudy environments where the max power point of the solar panels will fluctuate all day.
 【12V/24V Automatically Detect】 Automatically detects 12V or 24V DC system voltages (for Non-Lithium battery types), and the LCD screen and multiple LED indicators display the solar charging and battery operation information, customizable parameters, and error codes.
 【Full System Protection】 Meant to safeguard your system, the self-diagnostic capability can assess and protect against reverse polarity, battery overcharging, battery over-discharging, overload, short-circuiting, and reverse current.
 【4-Stage Safely Charging】 Features 4-stage charging (Bulk, Absorption, Float, and Equalization) of Lead Acid Batteries and 2-stage charging (Bulk and Absorption) for Lithiuim batteries as well as Lithium Reactivation.
 【Diverse Load Control】 Connect DC appliances directly to the optional Load Terminals and monitor consumption or set up timer controls directly from the controller.
 【Remote Monitoring】
RS232 communication port allows the Renogy Rover to communicate with the Renogy BT-1 Bluetooth module (highly recommend to add-on ) that will enable you to monitor the status and productivity of your panels through the Renogy DC Home App.


Specifications:

  RENOGY ROVER 20 AMP MPPT SOLAR CHARGE CONTROLLER
 ELECTRICAL PARAMETERS

 Nominal System Voltage: 12/24V (Auto-Detect for Non-Lithium Batteries)
 Max. PV Input Voltage: 100 VDC
 Power Consumption: <100mA/12V; <58mA/24V
 Ground Type: Negative
 Rated Charge Current: 20A
 Max. PV Input Power: 12V/260W, 24V/520W
 Max Battery Voltage: 32V
 Electrical Protection: Overcharging, over-discharging, overload, and short circuit.Capable of charging over-discharged lithium batteries.
 ENVIRONMENTAL DATA

 Protection Level: IP32
 Storage Temperature Range: -35°C to 75°C; -31°F to 167°F
 Operating Temperature Range: -35°C to 45°C; -31°F to 113°F
 Operating / Storage Humidity: ≤ 90%, No Condensation
 MECHANICAL SPECIFICATIONS
 Dimensions: 210 x 151 x 59.5 mm; 8.27 x 5.94 x 2.34 in
 Max. Terminals Size: 8 AWG 10mm2
 Weight: 1.4kg / 3.08 lb
 CERTIFICATIONS
 CE: YES
 FCC Class B Part 15 Compliant: YES


  RENOGY BT-1 BLUETOOTH MODULE

  OPERATION SPECIFICATIONS
 Communication Protocol: RS232
 Input Voltage : 5V
 Standby Power Consumption: 0.04W
 Serial Baud Rate: Fixed Baud Rate 9600bps
 Operating Power Consumption: 0.05W
 Protection Grade: IP54
 Port Type: RJ12
 MECHANICAL SPECIFICATIONS
 Communication Range: ≤82ft (25m)
 Cable Length: 16.4 ft (5.00m )
 Dimensions: 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm)
 Weight: 4.58oz (130g )
 Operation Temperature: -4°F to 185°F (-20℃~85℃)

  CERTIFICATIONS

  FCC Class B Part 15 Compliant: YES


Package Includes:
 1 x Rover Li 20 Amp MPPT Charge Controller
 1 x Remote Temperature Sensor
 4 x Mounting Brackets

Specifications

Features

LCD Display, Customizable, Bluetooth

Manufacturer Part Number

RNG-CTRL-RVR20

Model

RNG-CTRL-RVR20

Color

Black

Brand

Renogy

Assembled Product Dimensions (L x W x H)

8.27 x 5.94 x 2.34 Inches
